SPECIFICATION:
| 型号（Model） | DZB4-BJ240 | DZB4-BJ280 | DZB4-BJ320 |
| 包装速度（Packing speed） | 30-220包/分 | 30-220包/分 | 30-220包/分 |
| 薄膜宽度 (Width of film) | 240mm | 280mm | 320mm |
| 卷膜直径 (Film roll diameter) | 320mm | 320mm | 320mm |
| 薄膜厚度 (Film thickness) | 0.03-0.06mm | 0.03-0.06mm | 0.03-0.06mm |
| 制袋长度（Bag length） | 75-190mm或150-350mm | 85-210mm或170-380mm | 110-250mm或200-420mm |
| 制袋宽度（Bag width） | 40-100mm | 40-125mm | 40-150mm |
| 包装高度 (Max height) | Max.35mm | Max.45mm | Max.55mm |
| 输入电源 (Power supply) | 220V50/60HZ单相 | 220V50/60HZ单相 | 220V50/60HZ单相 |
| 耗电功率（Power Consumption） | 2.8kw | 2.8kw | 2.8kw |
| 整机重量（Weight） | 600kg | 600kg | 600kg |
| 机器外形（Dimensions） | 3900*840*1330mm | 3900*840*1330mm | 3900*840*1330mm |

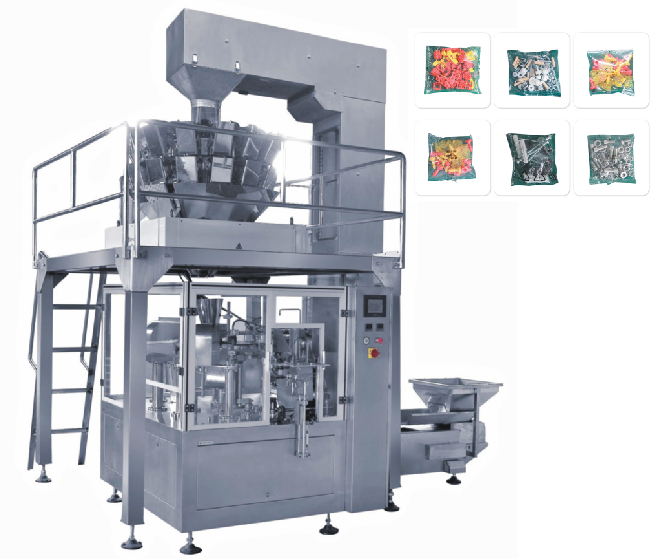

Characteristics :For accessary mounting screws,nuts and small plastic parts for the electric appliance;the decorative lamps and the decorative hardware.It replaced the the shape forming manner of the pre-made bags.greatly increased the work efficiency,so as to be widely adopted by many screww application enterprises.The Parts with special shapes can also be customed according to the clients' requirements.This machine is controlled by microncomputer,and the packing process can be realized automatically.
application: This machine for nut bolt screw,hard fittings and all regular shape of goods packing

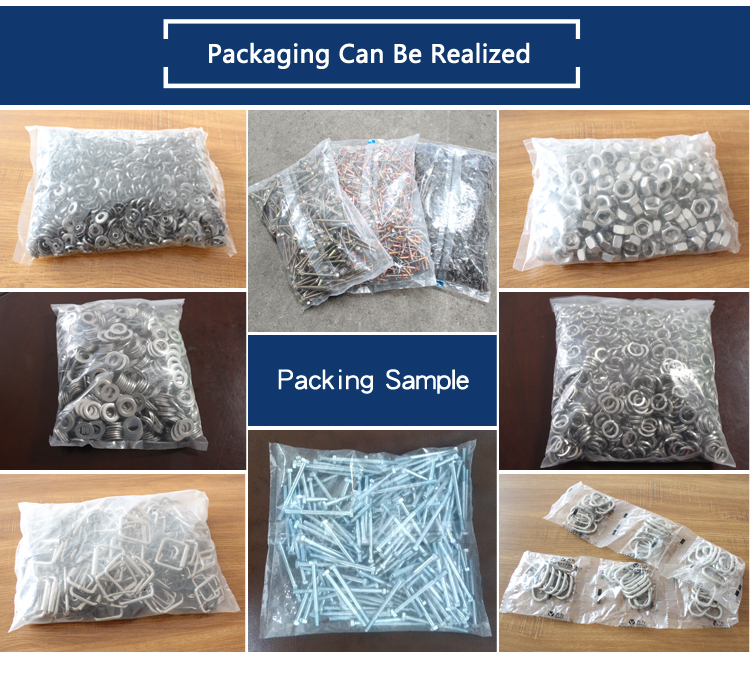

Bag Samples:
