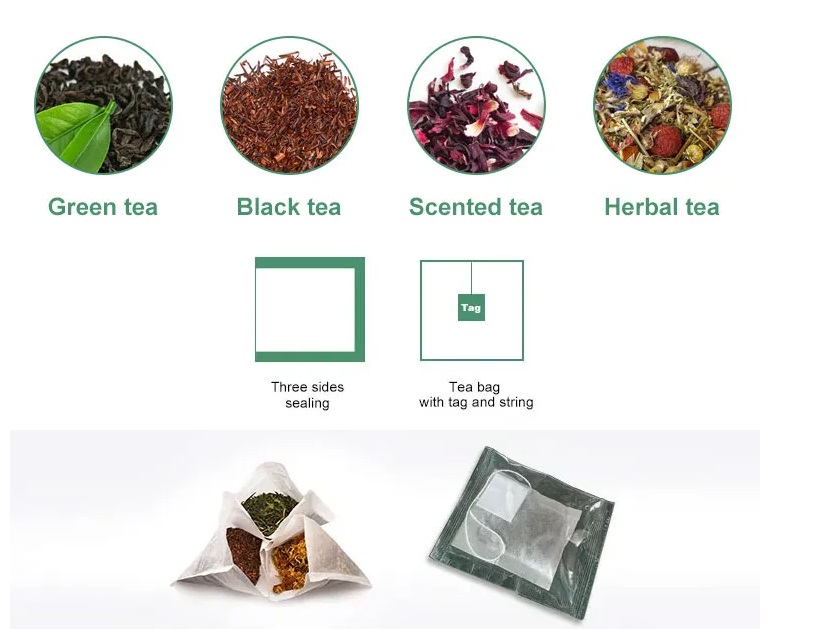

Tea packaging machine is suitable for tea. Such as bulk tea, herbal tea, black tea, green tea, health tea, flower tea and other internal and external bags are disposable packaging.
|
TECHNICAL PARAMETER OF PACKAGING MACHINE HTL-48C |
||
|
Packing specification |
Suitable size range |
Tag Size: L:20-24mm,W:40-55mm Thread Length:155mm Inner Bag Size: L:50~80 mm, W:45~80 mm Outer Bag Size: L:80~120 mm,W:75~95 mm |
|
Packing weight |
3g - 10g |
|
|
Packing speed |
30-40 bags/min |
|
|
Package material specifiction |
Material type |
Paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic,tea filter paper,thread,tag paper. |
|
Main performance parameters |
Total power |
1.9 kw |
|
Compressed air Consumption |
0.36 |
|
|
Air pressure |
0.6 |
|
|
Main specification |
Touch Screen |
Yes |
|
Photoelectricity Sensor |
Yes |
|
|
Date Robbon Printer |
Yes |
|
|
Machine size |
Machine Dimensions |
L1250mm* W700mm* H1800mm |
|
Machine Weight |
500kgs |
|
Machine Functions and Features
1. The inner and outer bag pulling film is controlled by a stepping motor, with stable bag length and accurate positioning.
2. PID temperature controller is adopted for more accurate temperature control.
3. PLC is used to control the action of the whole machine and the human-machine interface is displayed to ensure the hygiene and reliability of the product.
4. The inner tea bag and outer tea bag with thread and tag. The process of bag making, measuring, filling, sealing, cutting and counting can be done automatically.
