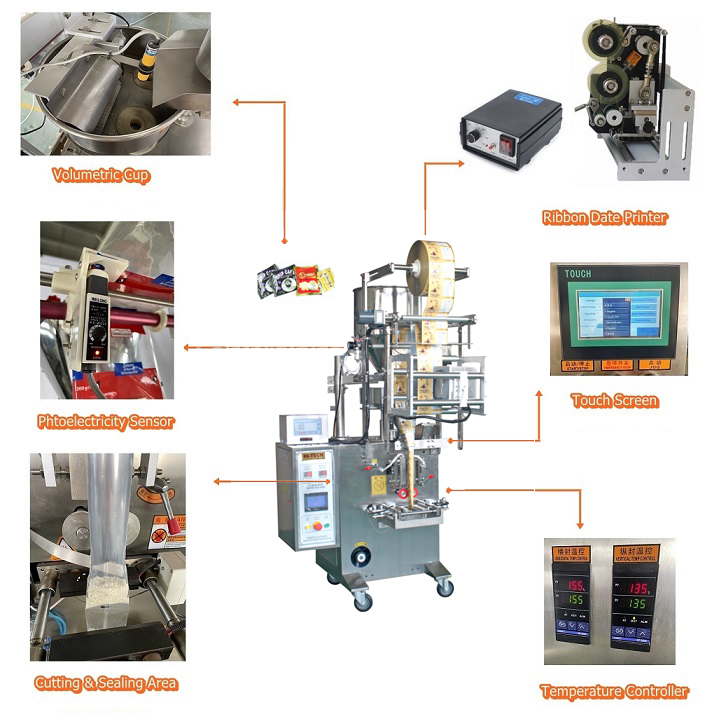

1.With the function auto filling, measuring, bag forming, code printing, sealing and cutting. Bag-making system adopts step motor with high precision

2.Touch screen display.

3. Controller adopts 6 kinds of languages displaying, can see the working conditions directly.

4. With intelligent photoelectric controller system.

5. Machine body full of 304 stainless steel.

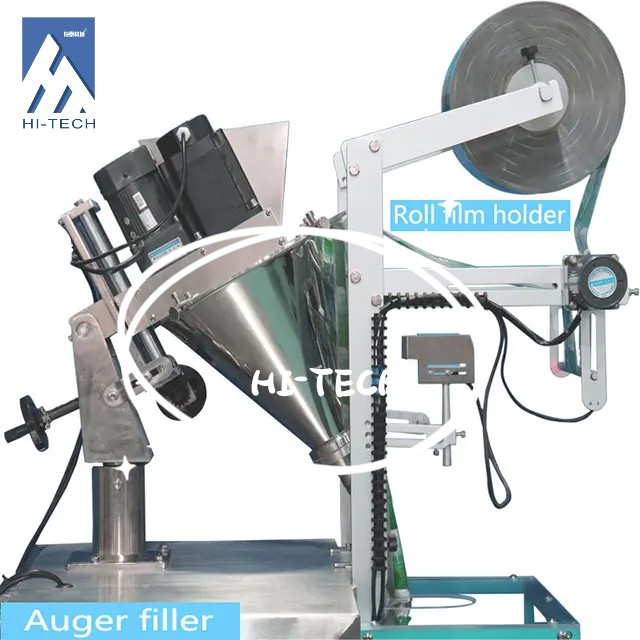

6. Auger filler, high accuracy.

7. Good visibility with side-open protective platens, operate safely.

8. Adopt the newest hopper sets, easy to adjust and clean, no need adjust again after clean, so that can improve working efficiency

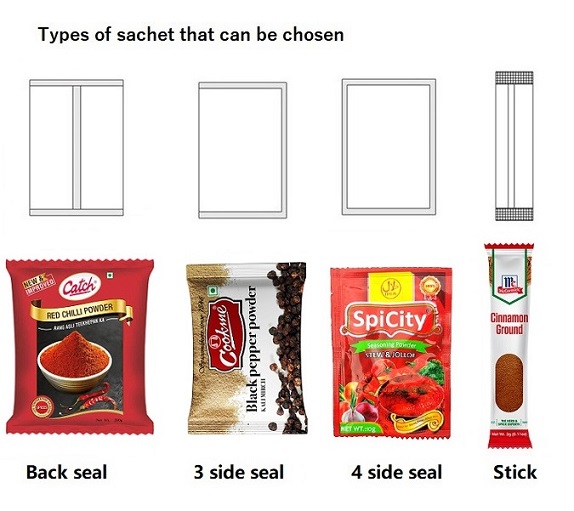

9. This machine is suitable for the packing of powder products, bag can choose from 3-side or 4-side seal or back seal according to customer needs.

10. Ribbon printer is addable according to customer needs, which can print one to three lines letter, date of produce and batch number.

Main Technical Parameter

Machine Model: HTL-400F
Bag-Making Size Range: (L)30-200mm,(W)30-150mm
Film Width Range: 80mm-320mm
Packing Filling Range: 1g-200g
Packing Speed Range: 30-70bags/min
Film Thickness Range: 0.04mm - 0.08mm
Packing Material: Paper. OPP/CPP. Pet/PE. Pet-Al/PE Composite Material
Film Roll Diameter: Max. 320mm
Power Supply: AC220V 50/60Hz 2.5kw
Packing type: All of kinds of powder
Machine Dimension: (L)1100*(W)820*(H)2150mm
Machine Weight: 300kg

We also manufacture Small Liquid Sachet Packaging Machines HTL-400Y (suits to pack the kinds of liquid & sauce: honey, ketchup, cooking oil, shampoo, shower, whisky, soy sauce, wine, juice, water, mayonnaise, detergent liquid etc), Small Granular Sachet Packaging Machines HTL-400A (suits to pack the kinds of fine: sugar, salt, rice, beans, washing powder, seeds, potato chips,sunflower seeds, nuts etc )
