Application and Bags Samples:
Main Technical Parameter:
| Machine Model: | HT-8GH |
| Bag Size Range: | Width 80-220mm, Length 80-350mm |
| Packing Filling Range: | 5g-2000g |
| Packing Speed Range: | 30-60bags/min |
| Packing Precision | error<±1% |
| Pouch Type: | Stand-up bag with zipper,Flat bag, paper bag, composite material bags etc. |
| Total Powder | 4 kw |
| Air Consumption: | 0.6m3/min |
| Machine Dimension: | (L)4400*(W)1800*(H)3700mm |
| Machine Weight: | 2900kg |
| Note 1: | More machine models according to the client's packing requirements for choice |
| Note 2: | According to the customer request,provides the special design |
Features
* Fully automatic rotary 8 station intermittent rotary preformed bag dispensing, opening and closing.

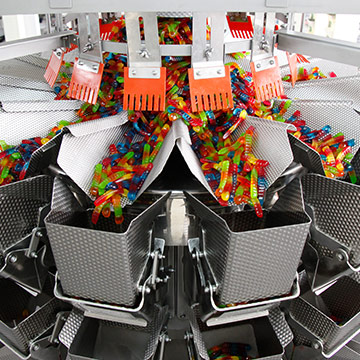

* Versatile in design, easy to link up with other down stream packaging equipment such as liquid filler, multi-heads weigher, metal detector, check weigher, case sealer, etc.
* Strict mechanical safety standards to ensure stable operation of machinery and increase packaging speed.
* Heavy parts are used to improve the durability of machinery.
* The simple design of the touch screen control system facilitates the use of operators, and is simple and easy to use.
* Improve the solution, reduce the cost for you.
* The production line meets the requirements of food hygiene and is convenient to clean.
* Automatic control of a series of processes from loading, filling, sealing, and finished products.
* Automatic lubrication system.
