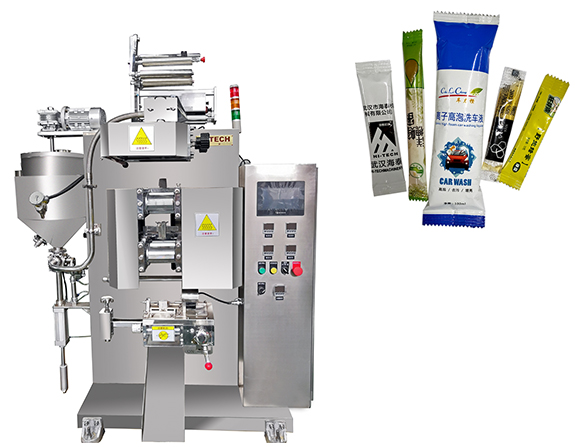

Characteristic:The back-sealing honey packaging machine is a three-pair roller vertical packaging machine designed for automatic packaging of shampoo, honey, syrup and other uniform viscous and paste materials. The packaging speed is fast, the bag shape is flat, exquisite and beautiful, and Adopt advanced PLC plus photoelectric control system. Packaging that achieves back sealing
Specification:
|
Bag Size |
Length: 50-210mm |
Width: 30-150mm |
|
Packing Speed |
20-120 Bags/min |
|
|
Capacity Range |
1-100ml |
|
|
Bag Materials |
PET/PE,PET/AV/PE, NY/AL/PE,NY/PE, etc |
|
|
Mechanical Power |
3.8KW/AC 380V |
|
|
Mechanical Dimensions |
L1400mm*W1000mm*H1800mm |
|
|
Sealing Method |
Three or four edges sealing |
|
|
Net Weight |
500Kg |
|
|
Optional Device |
Product conveying belt, Automatic feeding system, Liquid level display device, Mixing system, Third section electric control system, Code machine/Printing machine, Voltage regulator, Air compressor, Back suction device |
|

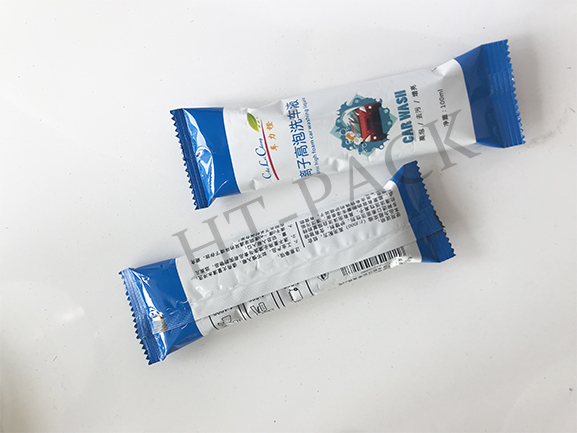

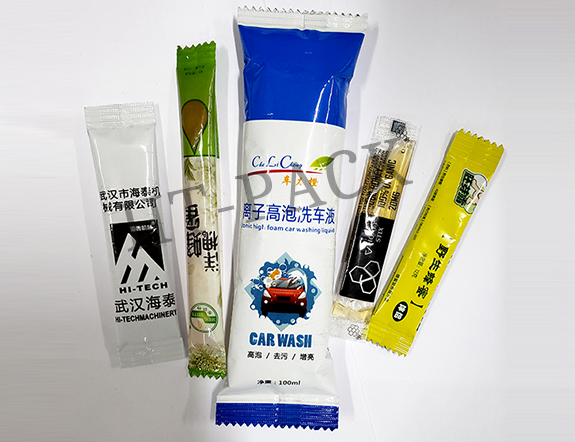

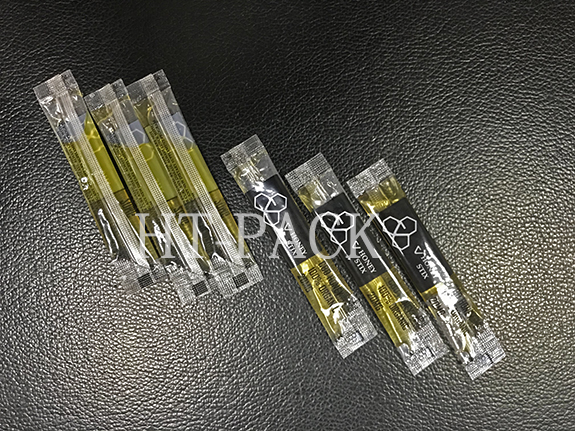

Bag Samples:
