HT-169 inner and out bag tea packing machinery factory

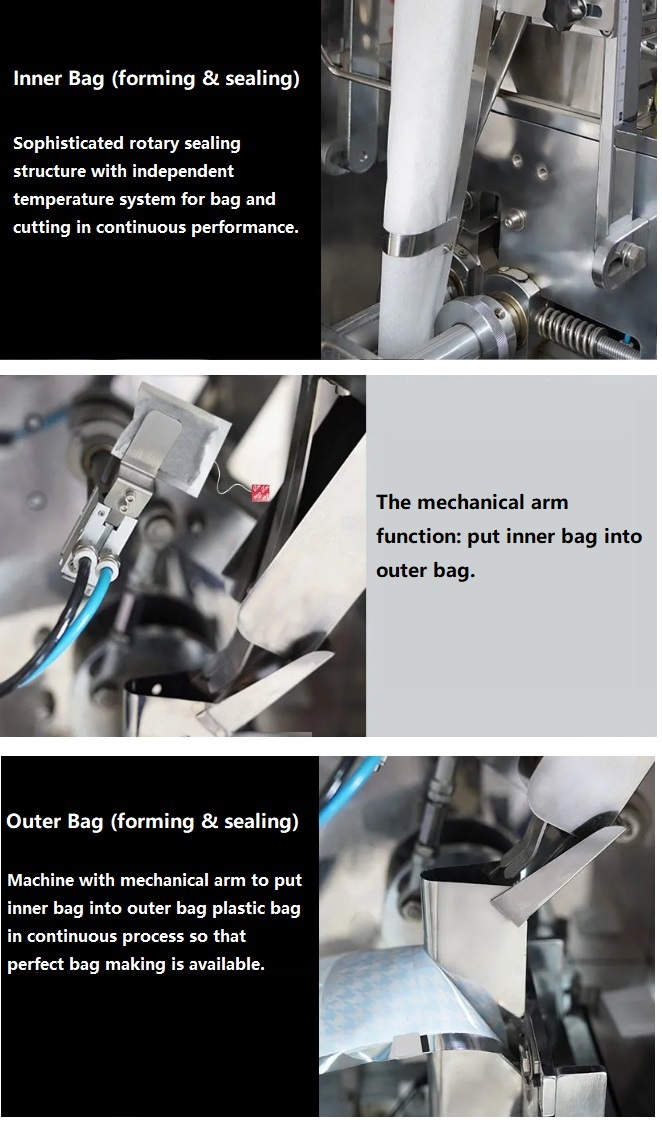

The inner and outer bag pulling film is controlled by a stepping motor, with stable bag length and accurate positioning.
|
TECHNICAL PARAMETER OF PACKAGING MACHINE HTL-48C |
||
|
Packing specification |
Suitable size range |
Tag Size: L:20-24mm,W:40-55mm Thread Length:155mm Inner Bag Size: L:50~80 mm, W:45~80 mm Outer Bag Size: L:80~120 mm,W:75~95 mm |
|
Packing weight |
3g - 10g |
|
|
Packing speed |
30-40 bags/min |
|
|
Package material specifiction |
Material type |
Paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic,tea filter paper,thread,tag paper. |
|
Main performance parameters |
Total power |
1.9 kw |
|
Compressed air Consumption |
0.36 |
|
|
Air pressure |
0.6 |
|
|
Main specification |
Touch Screen |
Yes |
|
Photoelectricity Sensor |
Yes |
|
|
Date Robbon Printer |
Yes |
|
|
Machine size |
Machine Dimensions |
L1250mm* W700mm* H1800mm |
|
Machine Weight |
500kgs |
|
