Ziplock Pouch Packaging Machine
Premade Pouch Packing Machine suits to pack the kinds of products into pouches.
Pouch size range: W80-200mm, L80-350mm.
Filling weight range: 10 grams to 1500 grams.
PLC & toutch screen controlled, servo open zipper.
|
SPECIFICATIONS FOR DOYPACK PACKING MACHINE |
|
|
Model |
HT-8GH |
|
Working Position |
10 |
|
Packaging materials |
All kinds of laminated material |
|
Packing size |
W: 80-200mm L:80-350mm (can be customized according to packing demands) |
|
Packing speed |
20-50 bags/min (speed is determined by the product itself and the filling weight)） |
|
Filling range |
10-1500gr (can be customized according to packing demands) |
|
Ttotal power |
5KW |
|
Application |
custom-made |
|
Machine Weight |
1500KG |
Main Features:
A wide range of materials can be packed. E.g.: kinds of shapes, state, or natures of particles and lumps.
Easy to operate. It adopts PLC control, human-machine interface operating system, to make the operation easy and intuitive.
Convenient to adjust. The replacement of species can be completed within 10 minutes.
Suitable for different types of bags or pouch.
A sound prevention system to protect qualified product rate, to avoid waste of bags or materials.
The pack machine parts made of stainless steel, to ensure the health and safety of materials and products.
High degree of automation. The whole process of weighing and packaging is unmanned operation. Automatic alarm system is adopted too.
Some imported engineering plastics without refueling, to reduce the pollution of materials.
Oil-free vacuum pump is adopted to avoid contamination of the production environment.

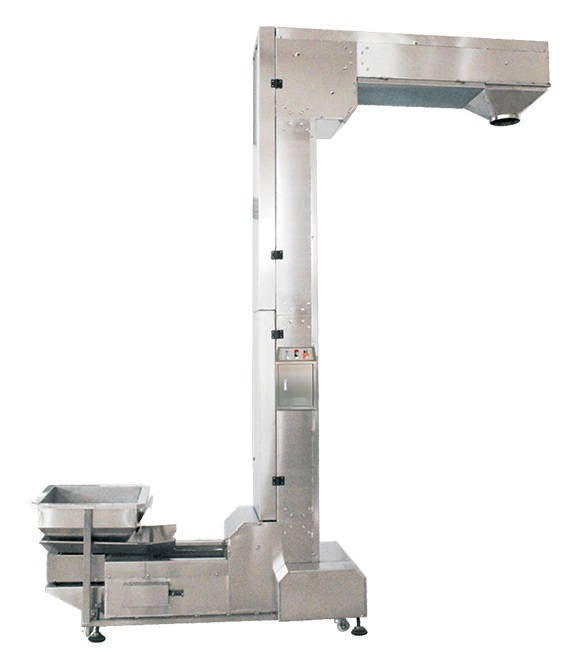

Z type Elevator with Bucket:

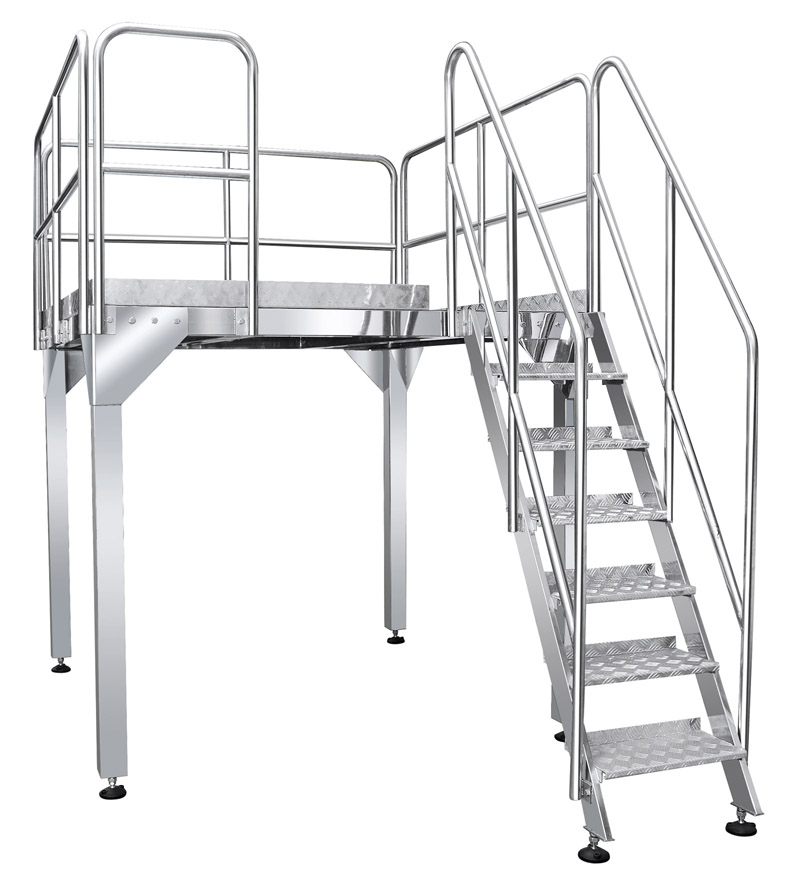

Work Platform (SS304 or carbon steel for choice)
