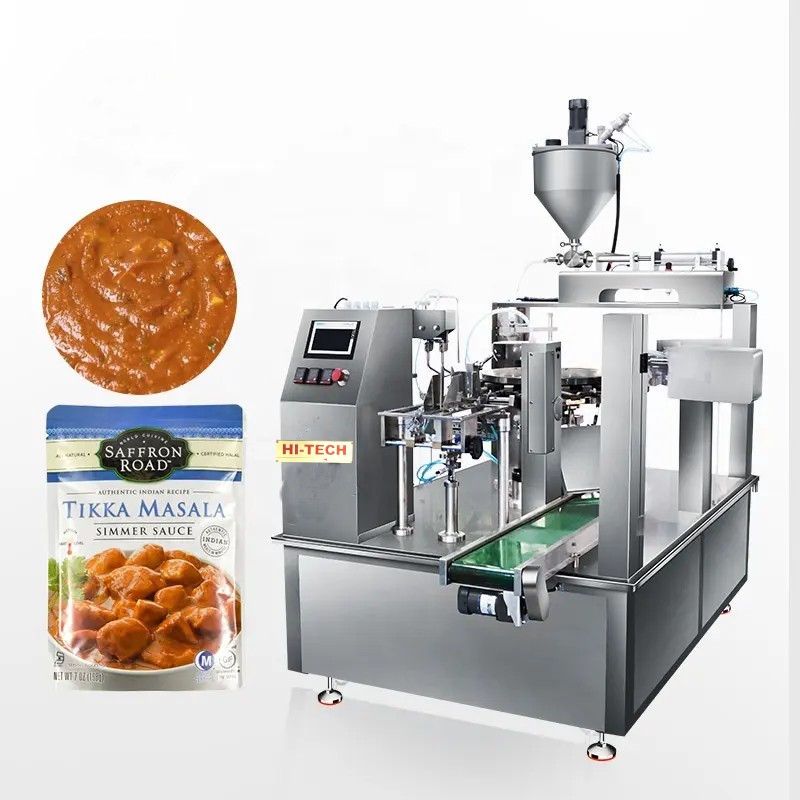

Premade Pouch Chilli Soy Sauce Packaging Machine

It suits to pack liquid, such as milk, water, honey, ketchup, Tomato Paste, detergent, yellow wine, soy sauce, vinegar, fruit juice, peanut thick liquid, jam, hot pepper sauce, thick bean sauce packed in bags.

1.This automatic liquid packaging machine is suitable for the packing liquid, the hydrodynamic material, such as milk, water, honey, ketchup, Tomato Paste, detergent, yellow wine, soy sauce, vinegar, fruit juice, peanut thick liquid, jam, hot pepper sauce, thick bean sauce packed in bags.

2. The machine has a piston pump measured, automatically take bag, bag coding, automatic bag opening, the liquid fillings into the bag, bag sealing stations.

3. It can be fully automatic operation, it can achieve product packing assembly line work, and improve production efficiency and significantly reduce product cost.

4. It conforms to the food processing machinery's sanitation standard. On the machine, the spare part which contacts with the material and pouch conforms to the standard of food sanitation request on material processing, food health and security guarantee.

Main Electrical Components:
* SIEMENS PLC
* SIEMENS HMI
* OMRON
* SCHNEIDER

Main Pneumatic Components:
* SMC Solenoids & Cylinders

Guarding:
* Glass Door Alarm
* Air Pressure Abnormal
* Automatic detection

Functions:
* Tool-less changeover (pre-close zipper)
* Horizontal infeed belt
* The control cabinet is rotated 180 degrees
* PLC adjust bag rel clamping
* Automatic lubrication system
* Included Vacuum Pump
* Internal grooved cam design
* Newest zipper open device
* Two sealing stations
* Nitrogen gas flush
* Pouch shaker
* Pouch outfeed conveyor
* Stainless Steel shell: SS304
* Date coding
* Air: 0.6m3/min

Main Technical Parameter:
