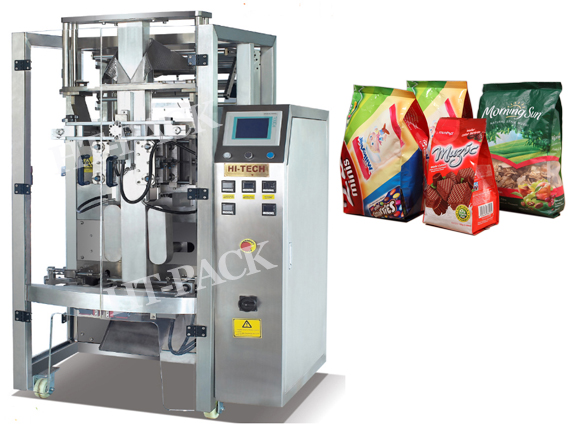

Bag sampls and Application:
Features:
1. The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.
2. Servo-motor driven, twin belt film pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within +I- 1ºC.
6. Adopts electrical and pneumatic components from reliable international manufacturer.Optional Parts
1. Date code printer
2. Gusset pouch forming device
3. Hole puncher
Optional Measuring Filler:
1) Volumetric cup Filler for Granule(sugar, salt, coffee, sesame, condiment, etc. )
2) Electrical Weigher for Granule (pet food, candy, chocolate, biscuit, preserved fruit, melon seeds, chips, peanut, etc. )
2) Auger Screw filler for powder (Coffee powder, milk powder, sugar powder, solid beverage, spice, etc. )
3) Rotary Gear Pump for Liquid and paste (sauce, ketchup, mustard, mayonnaise, etc. )
4) Piston Pump for Liquid (water, juice, cream, shampoo, conditioner, ketchup, etc. )
Specification:
| Model No. | HT-720 | HT-620 | HT-520 | HT -420 |
| Max. Measuring Range (ml) | 4000 | 3000 | 2000 | 1000 |
| Bag Length (mm) | 200-500 | 120-450 | 80-390 | 80-300 |
| Bag Width (mm) | 150-350 | 110-300 | 90-250 | 80-200 |
| Film Width(mm) | 320-720 | 240-620 | 200-520 | 160-420 |
| Speed (Bag/min) | 10-35 | 10-45 | 15-50 | 15-60 |
| Power | 220V/1ph, 3.5Kw | 220V/1ph, 3.2Kw | 220V/1ph, 2.8Kw | 220V/1ph, 2.5Kw |

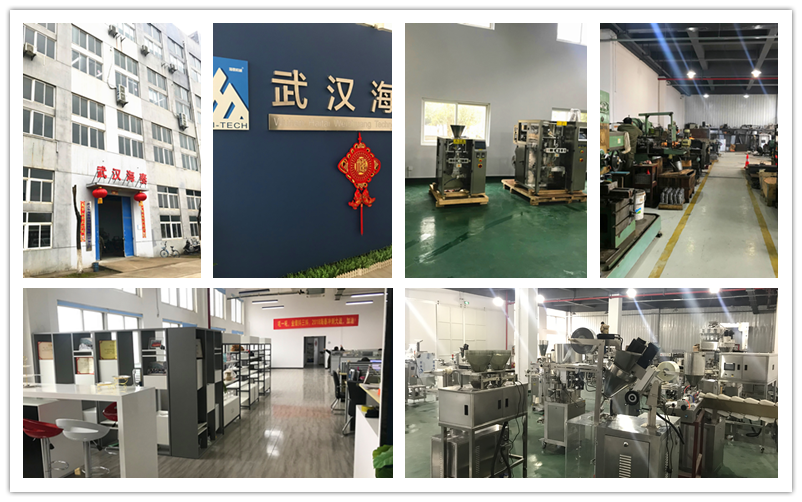

Packing Machine and our Factory Workshop:
